NC70-100 Drill Collar with API Standard and 237.3 mm Bevel Diameter

API standard drill collar,NC70-100 drill collar,237.3 mm bevel diameter drill collar

NC70-100 drill collar

237.3 mm bevel diameter drill collar

نام تجاری:

SWS

با ما تماس بگیرید

درخواست نقل قول

NC70-100 Drill Collar with API Standard and 237.3 mm Bevel Diameter

جزئیات محصول

نام محصول:

یقه مته

شماره و جدول اتصال:

NC70-100

قطر بیرونی (اینچ):

قطر خارجی (میلی متر):

254

قطر داخلی (اینچ):

قطر داخلی (میلی متر):

76.2

طول (میلی متر):

۹۱۵۰ یا ۹۴۵۰

قطر اریب (میلی متر):

237.3

نسبت مقاومت خمشی:

2.81:1

محصولات مرتبط

2-13/16 Inch Inside Diameter 6-3/4 Inch Outside Diameter Drill Collar in Oil and Gas Industry

بهترین قیمت را دریافت کنید

159.5 mm Bevel Diameter 3.18:1 Bending Strength Ratio 9150 or 9450 mm Length Drill Collar

بهترین قیمت را دریافت کنید

NC70-100 Drill Collar with API Standard and 237.3 mm Bevel Diameter

بهترین قیمت را دریافت کنید

3 Inch Inside Diameter Drill Collar with 232.6 mm Bevel Diameter in Oil and Gas Industry

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

86-519-83553967

Leo@service-js.com

86-519-83553967

اکنون تماس بگیرید

توضیحات محصول

COMPANY PROFILE

NC70-100 Drill Collar with API Standard and 237.3 mm Bevel Diameter 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

NC70-100 Drill Collar with API Standard and 237.3 mm Bevel Diameter 1

CERTIFICATES

PRODUCT DESCRIPTION

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;

NC70-100 Drill Collar with API Standard and 237.3 mm Bevel Diameter 3

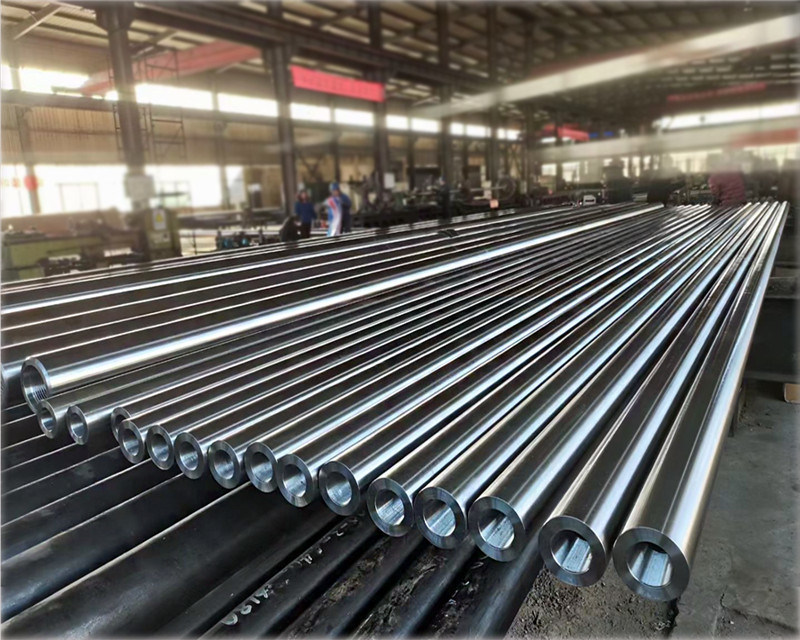

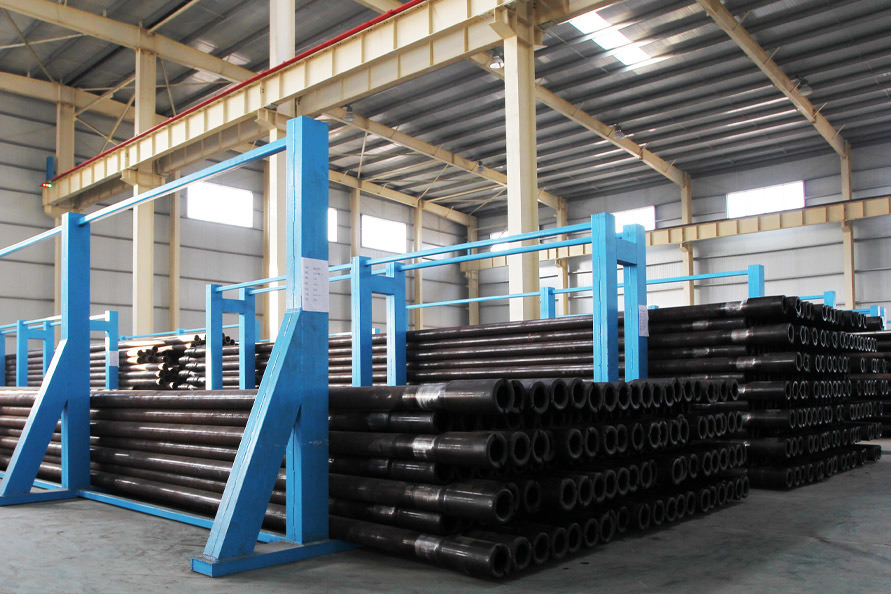

FACTORY PHOTOS

NC70-100 Drill Collar with API Standard and 237.3 mm Bevel Diameter 9

EXHIBITION

NC70-100 Drill Collar with API Standard and 237.3 mm Bevel Diameter 10

PACKAGE & TRANSPORTATION
