158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

158.8 mm drill collar,71.4 mm bevel drill collar,9150 mm length drill collar

71.4 mm bevel drill collar

9150 mm length drill collar

نام تجاری:

SWS

با ما تماس بگیرید

درخواست نقل قول

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

جزئیات محصول

نام محصول:

یقه مته

شماره و جدول اتصال:

NC46-62 (4IF)

قطر بیرونی (اینچ):

6-1/2

قطر خارجی (میلی متر):

158.8

قطر داخلی (اینچ):

2-13/16

قطر داخلی (میلی متر):

71.4

طول (میلی متر):

۹۱۵۰ یا ۹۴۵۰

قطر اریب (میلی متر):

150

نسبت مقاومت خمشی:

2.63:1

محصولات مرتبط

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

بهترین قیمت را دریافت کنید

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar

بهترین قیمت را دریافت کنید

Oil Well Drilling Oil Field Equipment NC44-60 Drill Collar 6 Inch Outside Diameter

بهترین قیمت را دریافت کنید

Drill Collar NC35-47 9150 mm Length for Oil Well Drilling Oil Field Equipment

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

86-519-83553967

Leo@service-js.com

86-519-83553967

اکنون تماس بگیرید

توضیحات محصول

COMPANY PROFILE

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 1

CERTIFICATES

PRODUCT DESCRIPTION

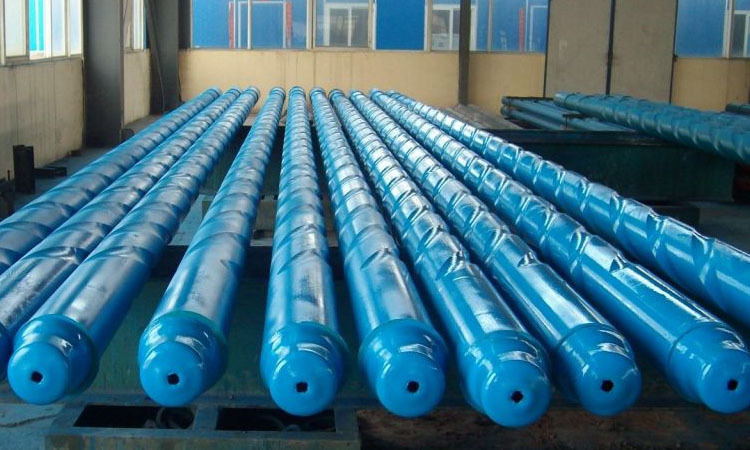

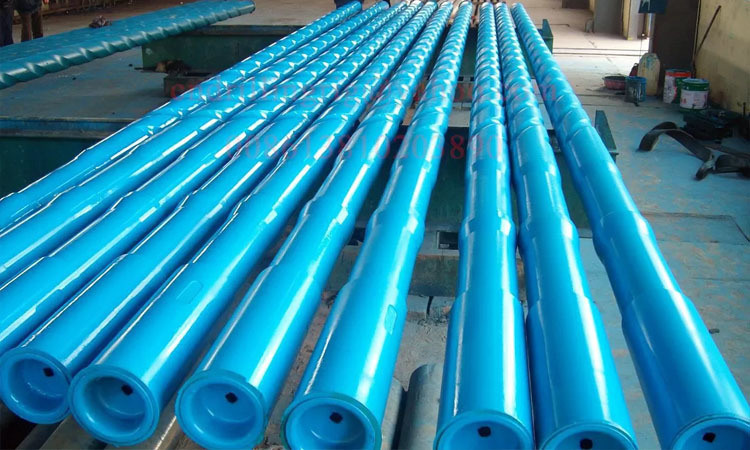

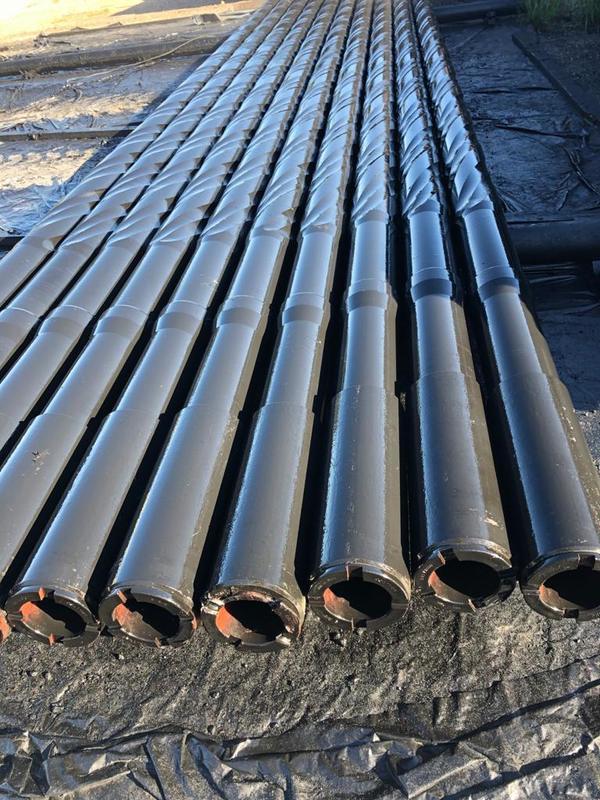

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 3

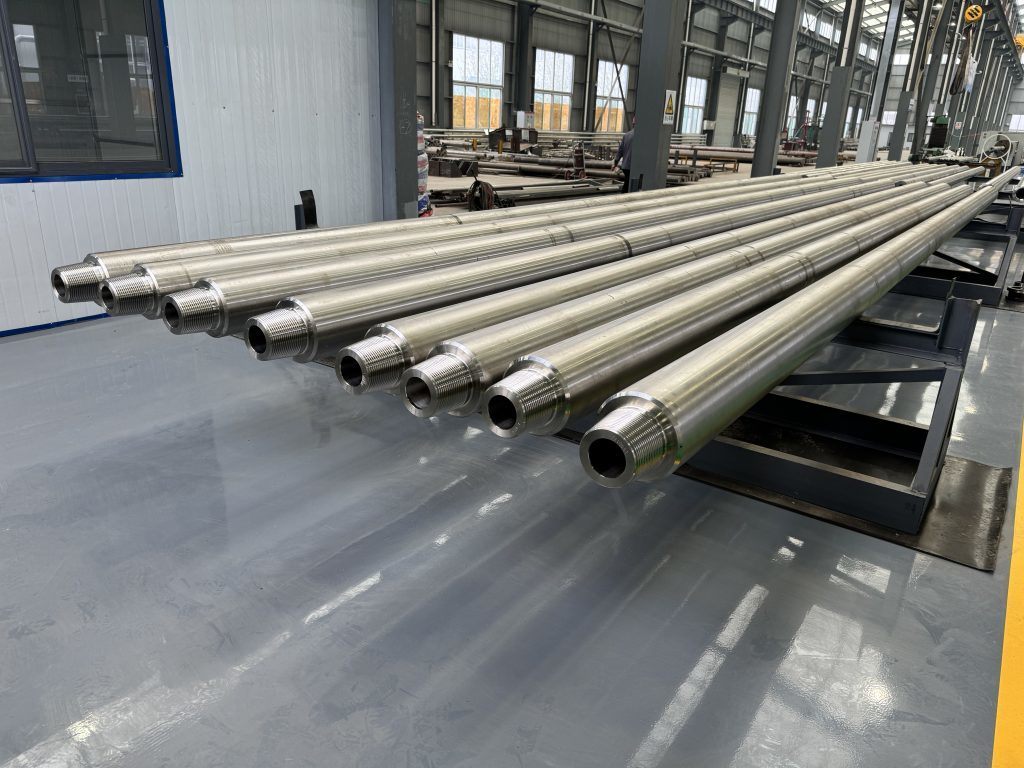

FACTORY PHOTOS

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 9

EXHIBITION

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 10

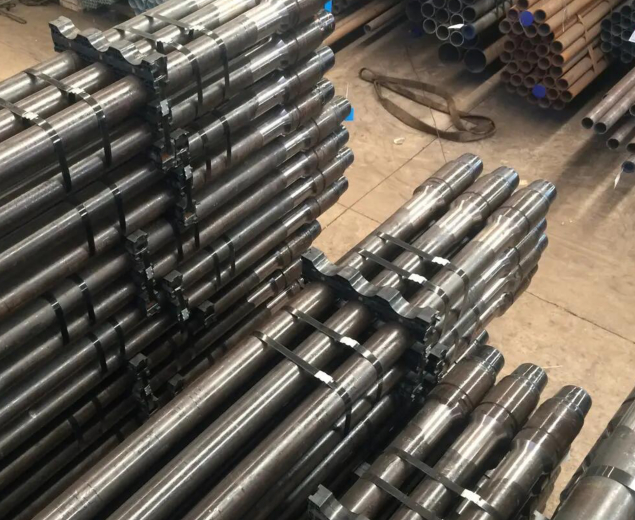

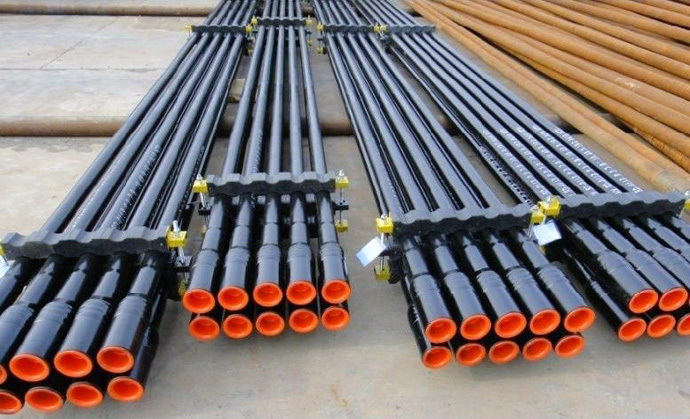

PACKAGE & TRANSPORTATION

CONTACT INFORMATIONS

Tel	+86 18015889633
Whatsapp	+86 18015889633
Mail	leo@service-js.com
Web	www.jssws-oil.com
