NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment

نام تجاری:

SWS

با ما تماس بگیرید

درخواست نقل قول

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment

جزئیات محصول

نام محصول:

یقه مته

شماره و جدول اتصال:

NC46-62 (4IF)

قطر بیرونی (اینچ):

6-1/2

قطر خارجی (میلی متر):

158.8

قطر داخلی (اینچ):

2-13/16

قطر داخلی (میلی متر):

71.4

طول (میلی متر):

۹۱۵۰ یا ۹۴۵۰

قطر اریب (میلی متر):

150

نسبت مقاومت خمشی:

2.63:1

محصولات مرتبط

API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling

بهترین قیمت را دریافت کنید

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

بهترین قیمت را دریافت کنید

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

بهترین قیمت را دریافت کنید

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

86-519-83553967

Leo@service-js.com

86-519-83553967

اکنون تماس بگیرید

توضیحات محصول

COMPANY PROFILE

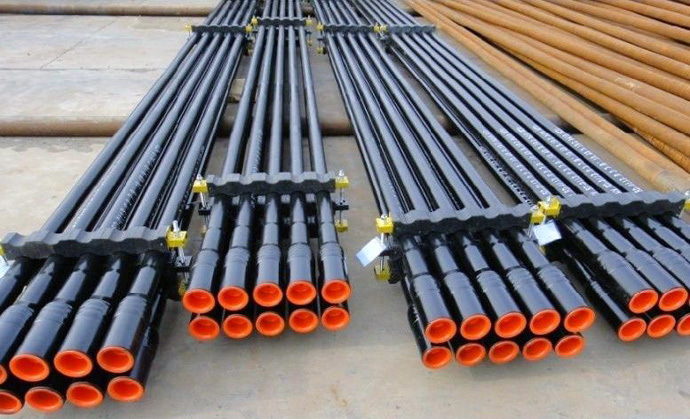

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

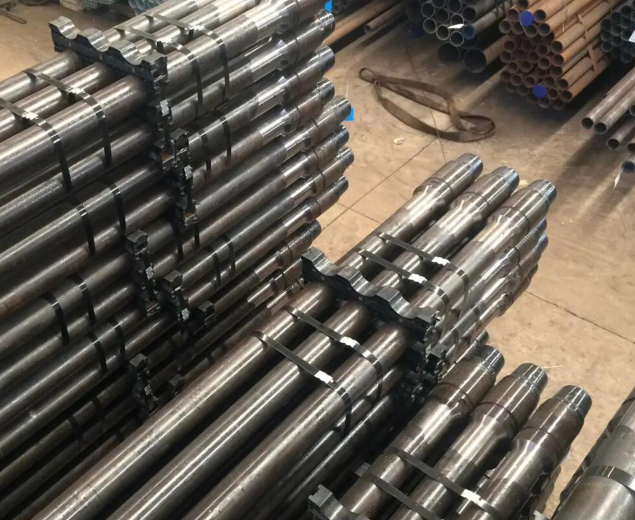

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 1

CERTIFICATES

PRODUCT DESCRIPTION

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;

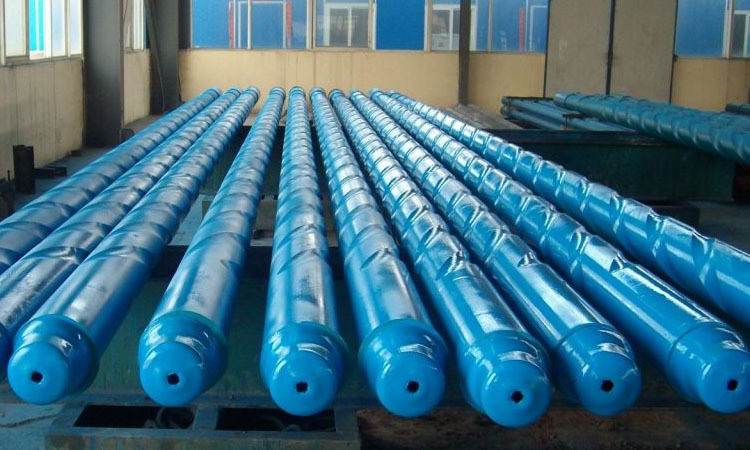

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 3

FACTORY PHOTOS

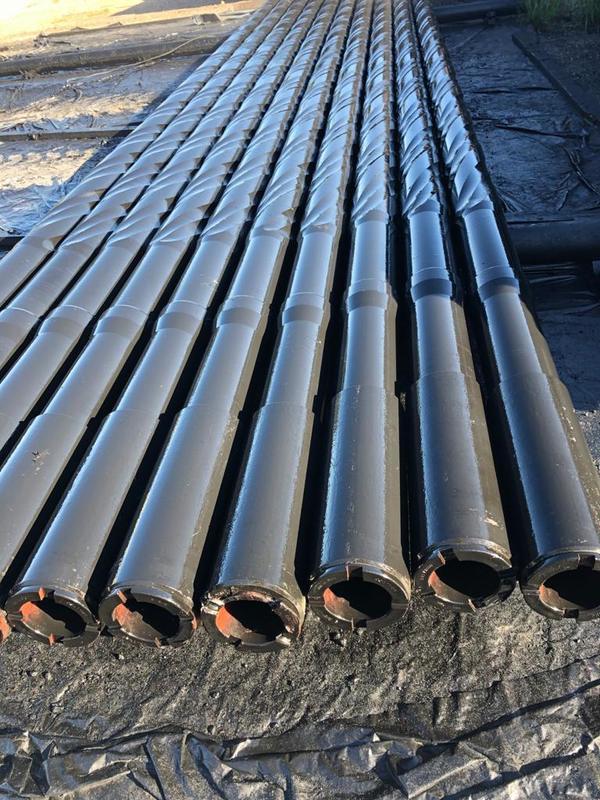

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 9

EXHIBITION

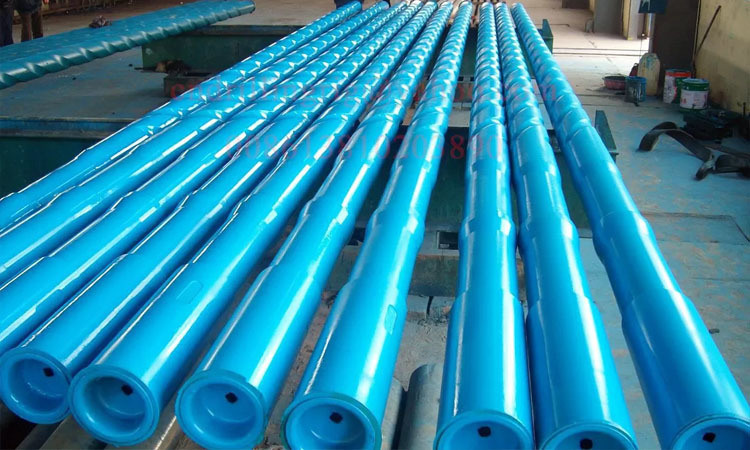

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 10

PACKAGE & TRANSPORTATION

CONTACT INFORMATIONS

Tel	+86 18015889633
Whatsapp	+86 18015889633
Mail	leo@service-js.com
Web	www.jssws-oil.com
