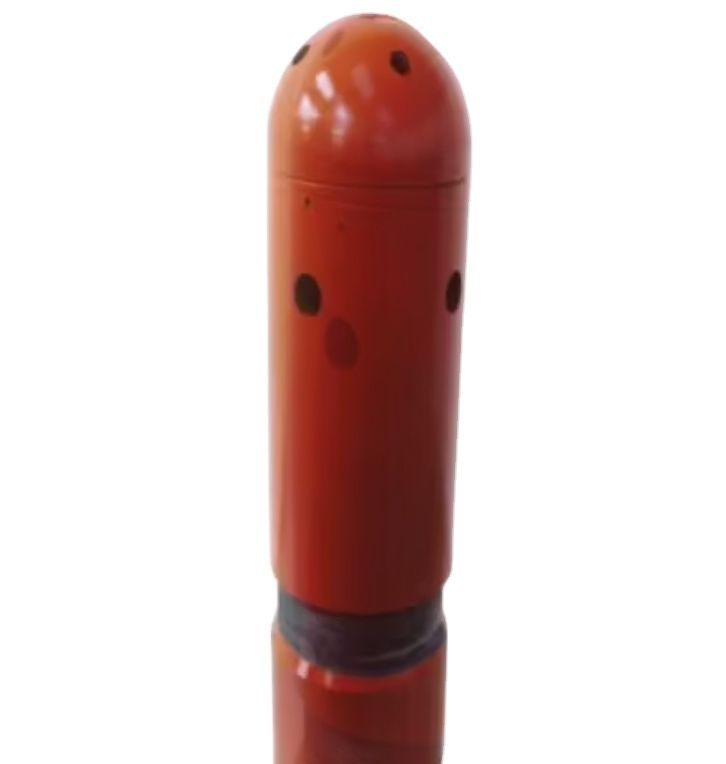

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

API standard float shoes,oilfield drilling float shoes,5-20 inch cementing float equipment

oilfield drilling float shoes

5-20 inch cementing float equipment

محل منبع:

جیانگسو ، چین

نام تجاری:

SWS

گواهی:

API

با ما تماس بگیرید

درخواست نقل قول

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

جزئیات محصول

بعد:

5 "-20"

وزن:

10 کیلوگرم

مادی:

فولاد کربن / فولاد ضد زنگ 304

نوع نخ:

STC LTC BTC EUE NUE XC

اورد:

6 "، 7 5/8" ، 10 5/8 "، 14 3/8"

شناسه متولد:

4 3/4 "، 6 1/4" ، 8 5/8 "، 12 3/8"

حداقل:

2 "، 2 3/8"

امتیاز فشار:

4351 ، 3626 lb/in²

اندازه دریچه:

70 میلی متر، 90 میلی متر

درجه حرارت:

150 درجه سانتیگراد ، 204 درجه سانتیگراد

ماده مهر و موم:

HNBR

ماده بهاری:

برنز فسفر C510

ماده بدنه:

فیبر فیبری

مقاومت در برابر فشار:

70 مگاپیکسل

اجزای اصلی:

فولاد

محصولات مرتبط

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

بهترین قیمت را دریافت کنید

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

بهترین قیمت را دریافت کنید

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

بهترین قیمت را دریافت کنید

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

86-519-83553967

Leo@service-js.com

86-519-83553967

اکنون تماس بگیرید

توضیحات محصول

Hot Product API Cementing Tools - Float Collar, Float Shoe & Guiding Shoe

Company Profile

Product Description

Float equipment serves as essential components in casing equipment for primary cementing operations. These precision tools guide the casing to total depth while preventing contaminated mud from entering the casing string.

Key functions and benefits:

Provides landing point for casing wiper plugs
Reinforces the lower end of casing strings
Ensures accurate cement slurry displacement
Features Hi Flow valves to minimize fluid erosion and pressure drop

Technical Specifications

Available in two valve sizes: 70mm and 90mm

Material specifications:

Valve components: PDC drillable composite plastic
Standard seal rating: 150°C (204°C optional)
Valve body: Fibre phenolic, rated for 70MPa and 204°C
Spring: Canadian phosphor bronze C510 material with high restoring force
Plunger seal: HNBR material rated for 70MPa and 204°C

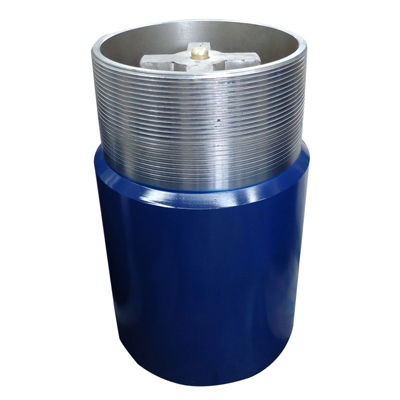

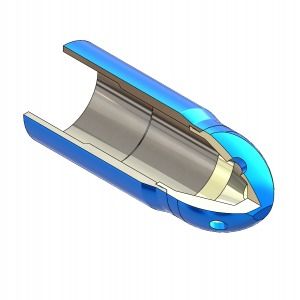

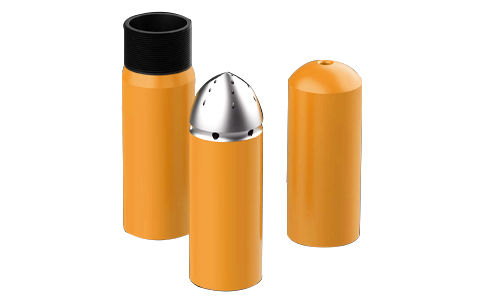

Product Images

Technical Specifications

Name	Size (in)	Bore O.D. (in)	Bore I.D. (in)	Min Bore Parameter (in)	Thread Type	lb/in²
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Our Manufacturing Facility

Device Images

Industry Exhibitions

Quality Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.

Q2: Could I have prices of your products?

A: Absolutely. Please send us an email with your requirements, and we'll respond within 24 hours with detailed pricing information.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer volume discounts. Larger quantity orders qualify for progressively better pricing.

Q4: Do you inspect the finished products?

A: Yes, our QC department conducts thorough inspections at every production stage and performs final quality checks before shipping.

Q5: What about the lead time for mass production?

A: Lead times vary based on order quantity and seasonal demand. We'll provide an accurate production timeline when we receive your specific requirements.
