API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

API standard float collar,oilfield drilling float shoe,cementing float equipment casing

oilfield drilling float shoe

cementing float equipment casing

محل منبع:

جیانگسو ، چین

نام تجاری:

SWS

با ما تماس بگیرید

درخواست نقل قول

API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

جزئیات محصول

بعد:

5 "-20"

وزن:

10 کیلوگرم

نوع نخ:

STC LTC BTC EUE NUE XC

مادی:

فولاد کربن/آلیاژ آلومینیوم

اجزای اصلی:

دریچه

اورد:

6 "، 7 5/8" ، 10 5/8 "، 14 3/8"

شناسه متولد:

4 3/4 "، 6 1/4" ، 8 5/8 "، 12 3/8"

حداقل:

2 "، 2 3/8"

امتیاز فشار:

70 مگاپیکسل

درجه حرارت:

۲۰۴ درجه سانتیگراد

اندازه دریچه:

70 میلی متر، 90 میلی متر

ماده مهر و موم:

HNBR

ماده بهاری:

برنز فسفر C510

ظرفیت تولید:

10000 pcs در هر ماه

موق:

محصولات مرتبط

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

بهترین قیمت را دریافت کنید

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

بهترین قیمت را دریافت کنید

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

بهترین قیمت را دریافت کنید

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

بهترین قیمت را دریافت کنید

با ما تماس بگیرید

86-519-83553967

Leo@service-js.com

86-519-83553967

اکنون تماس بگیرید

توضیحات محصول

High Quality API Cementing Tools - Casing Float Collar & Float Shoe

Product Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Key Features and Benefits

Essential components for primary cementing operations in oilfield drilling
Guides casing to total depth while preventing contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for improved structural integrity
Ensures precise cement slurry displacement accuracy
Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal capability

Technical Specifications

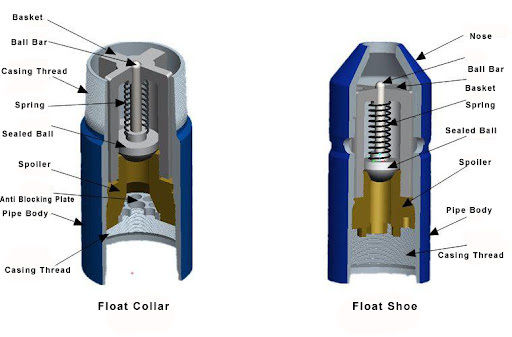

Valve body constructed with fiber phenolic material, rated for 70MPa and 204°C seal. Spring components sourced from Canada Victory Spring Company, made from phosphor bronze C510 material for high restoring force and drillability. Plunger seal top molded with HNBR, rated for 70MPa and 204°C operation.

Frequently Asked Questions

When can I get the price?

We typically provide quotes within 24 hours of receiving your inquiry. For urgent pricing requests, please indicate this in your email for priority handling.

Could I have prices of your products?

Yes, please contact us via email for current pricing. We respond to all inquiries within 24 hours.

Can I get a lower price if I order large quantities?

Yes, we offer volume discounts for larger quantity orders.

Do you inspect the finished products?

Yes, our QC department conducts thorough inspections at each production stage and performs final quality checks before shipping.

What about the lead time for mass production?

Production lead times vary based on order quantity and seasonal demand. We provide accurate timelines when processing your order.
